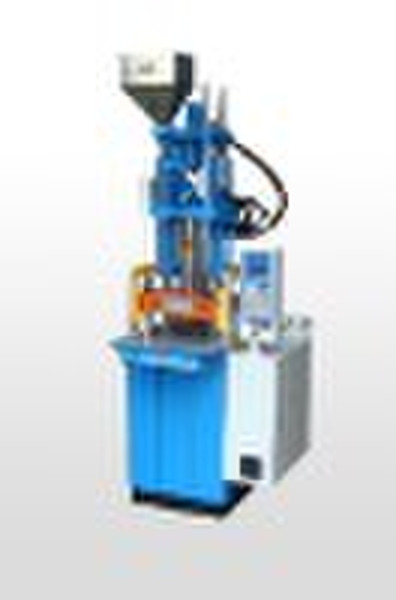

vertical injection moulding machine

Characteristic:1Vertical mould clamping,Vertical injection. 2Simple stucture,small take ups,easy to mocking up. 3Suitable for multi-purpose plastic mould injection especially for insertions forming. 4The lower die is fixed and the upper die is moveable,easy to place or move of inser-tions. 5The design of vertical compression typed master/slave clamping cylinder,high-speed and low-pressure matched die and multiple pressure control increase the se-rvice life of dia and have a high safety. 6Height of injection abse can be adjusted.which is convenient for the installation of die and the clean out of raw materials. 7Four column full hydraulic clamping,can be heightened the thickness of the die and increased the height of mould. 8Adopt computer liquid crystal display(LCD),which can display the function clearly and precisely. 9Capable of store 68 groups of mould form-ing files.STANDARD EQUIPMENT 1Safety raster Equipments. 2Screw cool-protect eqipment. 3Emergency stop safety switch. 4P.I.D.PROPORTIONAL TEMPERATURE CONTROL. 5Auto malfunction display and stop working. 6Micro computer screen control system. 7Double-way safety star up switch. 8High speed.Low pressure safety clamping device. 9Proportional pressure and flow control v-alves. 10Auto clean equipment. 11Linear position transducer.OPTIONAL EQUIPMENT: 1Spring nozzle. 2Auto alarm device. 3Hopper dryer,auto loader. 4Drawer equipment. 5Zipper machine huff-setting. 6Mechanical Protection Equipments. 7Automatic insert system(special design). 8Thermosetting injection system. 9Duo Color Ejection System. 10Fuel line semi-closed loop device. 11Accumulator device.Specification ModelUnitXRT400Injection UnitScrew diametermm 28 32 36Maximum injection pressureKg/cm2 2455 1879 1485Theoretical shot volumecm3 74 97 122Maximum injection capacity(PS)g/Oz68/2.4 89/3.1 112/3.9Injection ratecm3/sec 38 49 62Screw rotation speedrpm5 240Clamping UnitClamping forceton40Top platen sizemm550 * 395Bottom platen sizemm590 * 435Slip board sizemm**Rotary table diametermm**Mold dimensions (L*W)mm410 * 255Minimum mold thicknessmm150/250Maximum Opening strokemm200Maximum daylightmm350/450Ejector forceton1.35Ejector strokemm40OthersPump/ motor powerHP(kW)7.5 (5.5)Hydraulic system pressureKg/cm2140Barrel heating powerkW3.95Total wattagekW9.45Oil tank capacityL216Machine dimensions(L*W*H)m1.8* 1.1* 3.1Machine weightton1.5
